Jump start for the little ones - NeoBreathe
Every first breath is something very special - especially for the very youngest. When premature babies and newborns need support at the start of life, they rely on highly developed, safe medical technology that is customised to their needs.

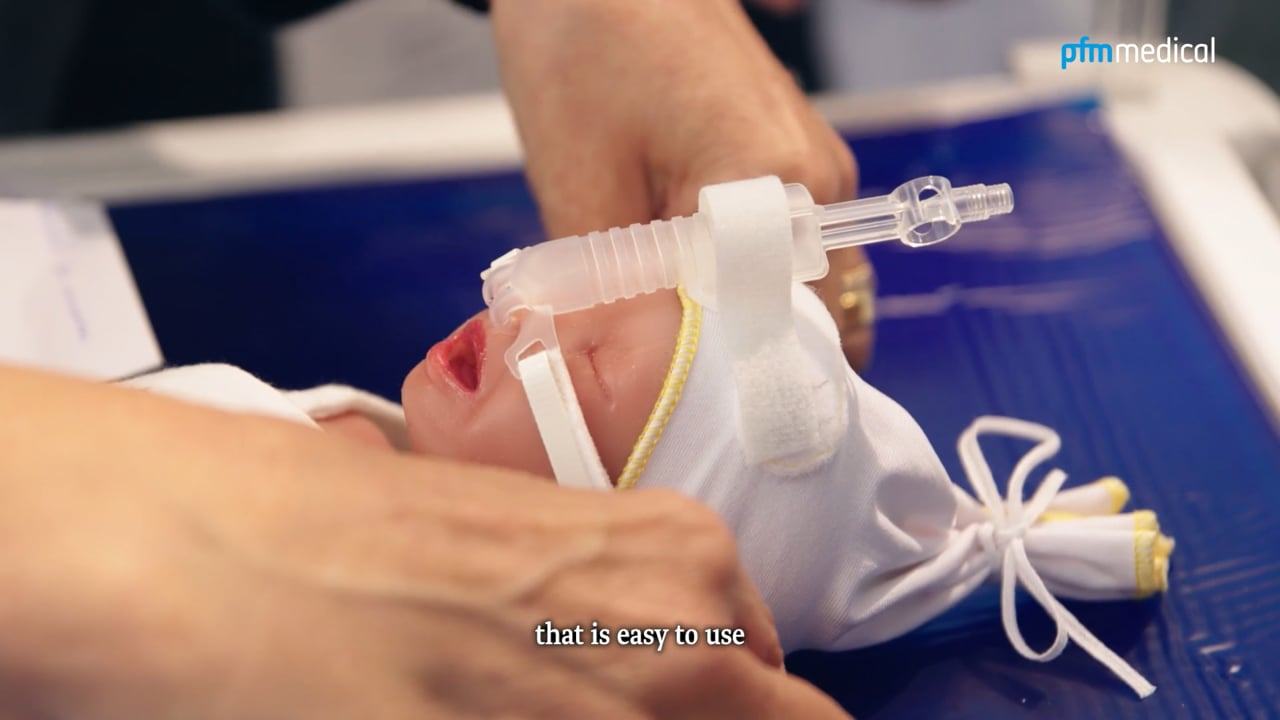

This is exactly where our extremely lightweight and intuitive valve comes in. NeoBreathe is a quick and safe solution in critical moments to provide doctors and carers with the best possible support. It enables effective CPAP support without any additional accessories. With NeoBreathe, we make breathing easier for premature babies and newborns. It is quick, uncomplicated and easy to use with oxygen or compressed air at any time (plug & play).
In this way, we give the little ones the decisive boost they need for a good start in life.
Impressions from the launch of NeoBreathe at the GNPI 2025 in Germany
From the idea to the application - 100% pfmmedical
NeoBreathe is 100% pfmmedical.
From concept to application, the new CPAP valve was developed entirely in-house - with the aim of providing even better and gentler care for premature babies and newborns.
For Dr. Bianca Haase (Head Paediatrician, Reutlingen District Hospital), who helped develop NeoBreathe, the focus was on one thing: intuitive use and the least possible stress for the smallest patients. Her experience in nursing and clinical practice has had a decisive influence on the product.
Martina Altay from our team emphasizes that, thanks to our in-house production, we can respond directly to market requirements and implement adaptations quickly.
What did we take away from the GNPI 2025? Your voices!
At the congress, we had a real exchange with the specialist community - with those who use NeoBreathe.
We were particularly pleased with the openness, the honest feedback and the great interest in a solution that not only combines safety, simplicity and effectiveness, but is also needed in resource-poor countries such as Eritrea - where simple and affordable products are crucial.
We took a lot away from the discussions. After all, real innovation is not created in a laboratory or at a desk, but in dialog with those who use it.
The positive first impression that many people had of NeoBreathe was an absolute highlight for us.
pfmmedical promotes innovation
Innovations arise where experience meets real feedback. At pfmmedical, we see further development as part of our self-image. We have been on the market with our solutions for many years. This is precisely what gives us the know-how to think ahead.
NeoBreathe is the result of this attitude: a product that responds to real needs. It was developed with the application in mind, with a clear focus on user-friendliness and with a deep understanding of the challenges faced in everyday clinical practice.
Feedback from the field is indispensable for us. It helps us to make things simpler, more efficient and more reliable - without losing sight of reality. Because in the end, what counts is not how new an idea is, but how well it works.
NeoBreathe is team performance
At pfmmedical, we have developed a product that is specially tailored to the needs of newborn babies with interdisciplinary teams, quick coordination and a lot of passion.
What drove us in the process?
- The direct exchange between departments
- Control over every step of development
- And the shared conviction that children are not small adults - they need their own solutions!
Dr. Bianca Haase (Head Paediatrician, Reutlingen District Hospital), Claudia Schwenn and Martina Altay from our project team all agree: NeoBreathe is a project close to our hearts. For us. And for the little ones.
Product Information
NeoBreathe is a non-invasive respiration valve intended for the initial care of prematures and neonates as part of Continuous Positive Airways Pressure therapy
(CPAP). The valve operates according to the Benveniste principle. When the NeoBreathe valve is applied, a Positive Endexpiratory Pressure (PEEP) is generated
in the lungs, ensuring there is continuous airflow into the lungs while the patient breathes spontaneously.
NeoBreathe has four holes in the centre – two opposite each other. This ensures that breathing air can always escape and that the valve cannot be accidentally closed by using one hand. This safety function prevents the child's lungs from being overstretched due to excessive pressure.
Advantages of NeoBreathe
Maximum Reduction of Additional Work of Breathing
NeoBreathe enables improved oxygenation and effectively supports the patient’s respiratory effort during spontaneous breathing.1

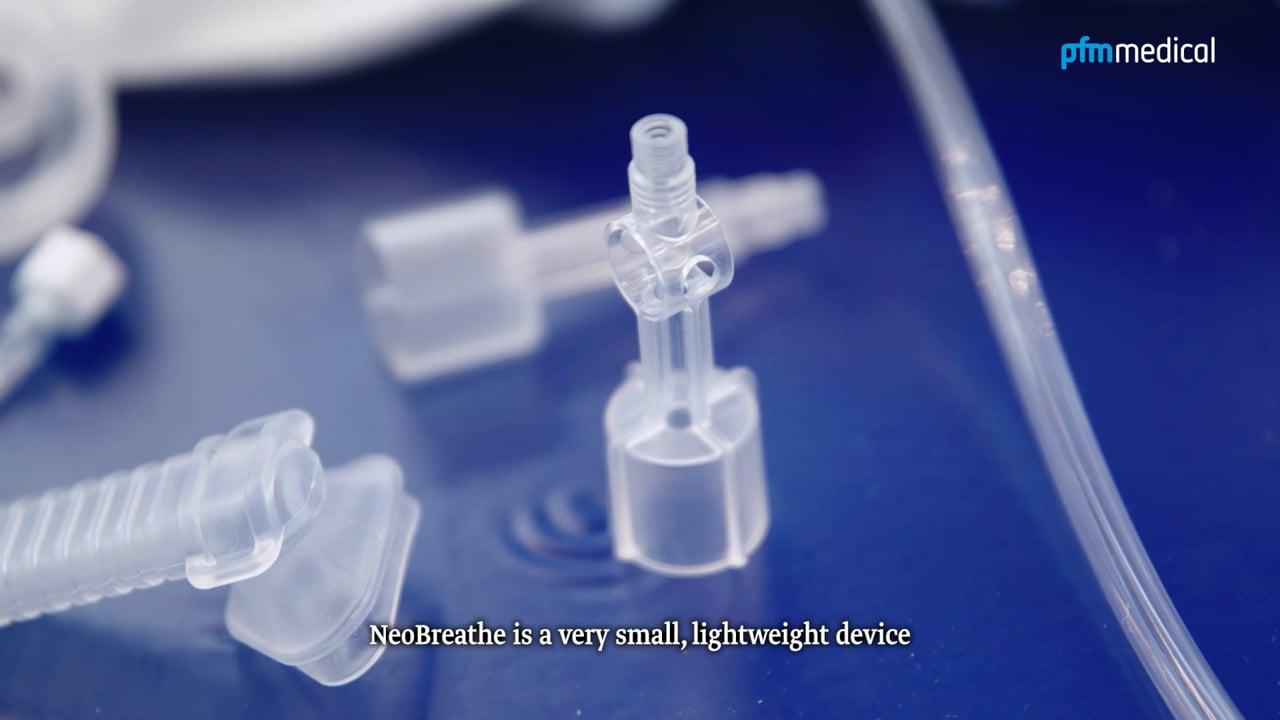

Extremely Light
The low weight device reduces the risk of pressure sores and facial abnormailities.
Quickly Ready for Use
Can be used without ‘upgrading’ with only compressed air or medical oxygen, as well as a flowmeter or pressure limiter (plug & play). Quick and easy to use thanks to its small size.
Methode
The PEEP is defined as the positive pressure in the lungs at the end of expiration. When setting a higher PEEP level, the pressure during expiration does not fall below the defined airway pressure. Therefore, breathing is supported by improving oxygenation through various mechanisms, such as preventing alveolar collapse and atelectasis (airway obstruction). By stabilising the alveoli, keeping the lungs open and increasing functional residual capacity can support the gas exchange surface. By stabilising the alveoli, keeping the lungs open and increasing functional residual capacity can support the gas exchange surface.
Setting Gas Flow
| Gas flow (l/min) | PEEP 1.000 g patient (cmH2O) | PEEP 3.000 g patient (cmH2O) |
| 5 | -2 | -2 |
| 10 | -5 | -5 |
| 15 | -10,5 | -11 |
The representation of the PEEP settings as a function of gas flow are dependent on the neonate’s interface, which may vary. The values were determined in non-clinical tests with 1,000 g and 3,000 g premature weight simulations. N.B. these values are to be considered as reference values only.
Downloads
Do you have any questions regarding NeoBreathe?
pfmmedical in Neonatology and Pediatrics
Our goal at pfmmedical is to continuously improve the care of premature babies and newborns. We want to help ensure that our young patients receive the best possible medical care so that they can develop optimally.

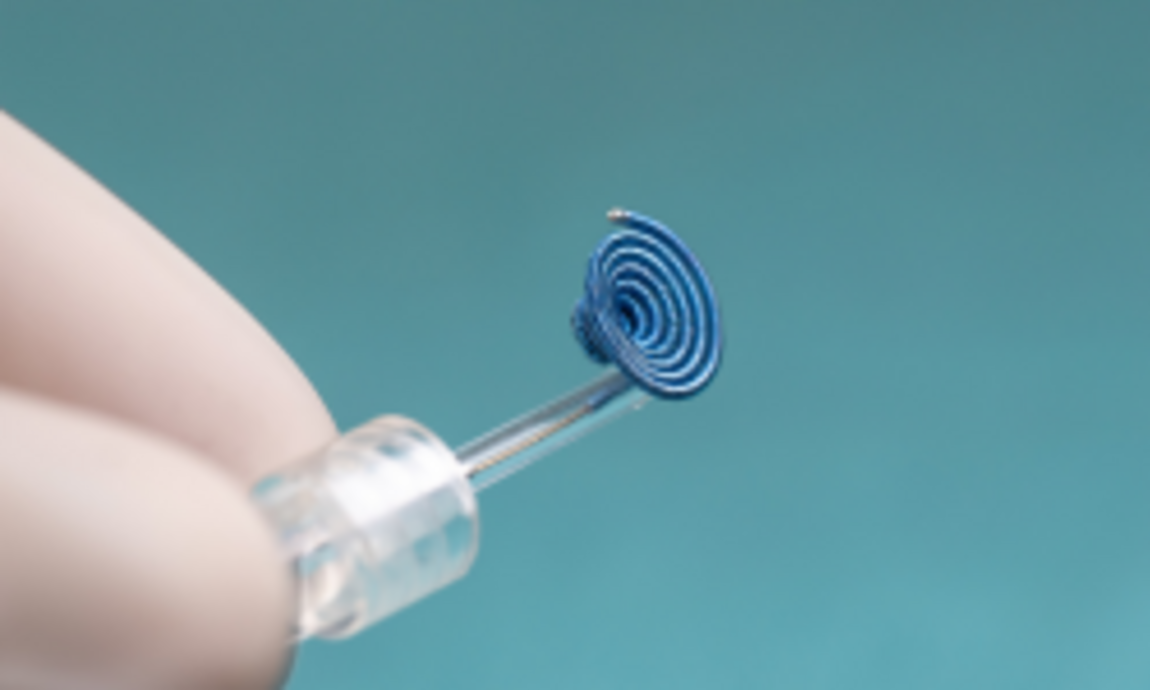

Occlusion Systems
We developed our occluders to be able to close holes in children's hearts in a minimally invasive way.
Stents and Special Catheters
We also work closely with other manufacturers who specialise in solutions for small children. The products from NuMed and Pediavascular round off our range for neonatology and paediatrics.
