Redon-Sets

Redon-Sets
Image similar

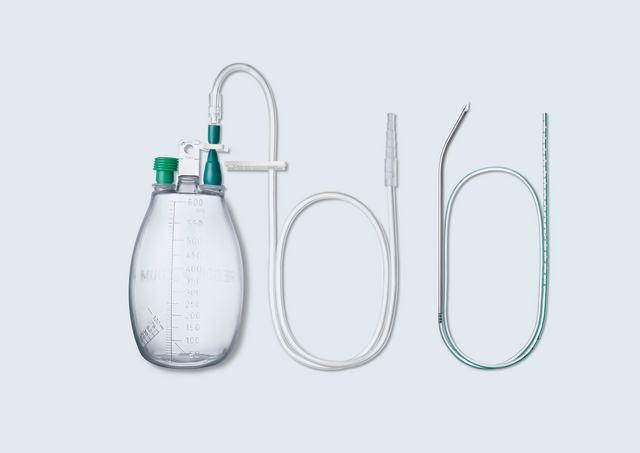

The Redon Sets for post-operative high vacuum wound drainage consist of a Redon bottle, a connection tube, a Redon drain and a single-use needle. The Redon Sets are suitable for initial placement during surgery and contain all for the drainage needed components.

Benefits

Complete set
In addition to the Redon bottle with connecting tube, the set also contains a drain and a suitable disposable needle.

Redon connection tube
The tube with transparent universal Redon connector CH 06 - CH 18 for connection to the drain is pre-attached.

High initial vacuum
The Redon bottle has a high initial vacuum of max. 98,000 Pa.

Several system sizes
200 ml and 400 ml systems provide a 50 ml safety volume.

Product Details

  • Manufacturing upon customer demands. Minimum order quantity and delivery time upon request.
  • Luer-Lock connection
  • Crystal-clear material for reliable qualitative assessment of secretions
  • Rough and fine graduation for at-a-glance information about current fill levels
  • Integrated vacuum indicator with min./max. indication
  • Quick-release fasteners included
  • Single packed, sterile
  • Latex-free
  • Redon bottle and Redon drain DEHP-free

Technical Data

  • Volume: 600 ml
  • Drain length: 75 cm
  • Drain perforation length: 15 cm

Manufacturer

  • pfm medical mepro gmbh, Am Söterberg 4, 66620 Nonnweiler, Germany

Ordering Information

Article numberDrain sizeDelivery unit (VPE)
20567 14 CH 25 pcs
20568 16 CH 700 pcs
20569 12 CH 25 pcs
20918 18 CH 25 pcs
21502 10 CH 25 pcs

Downloads

Instructions for use can be found in our Download Center.
