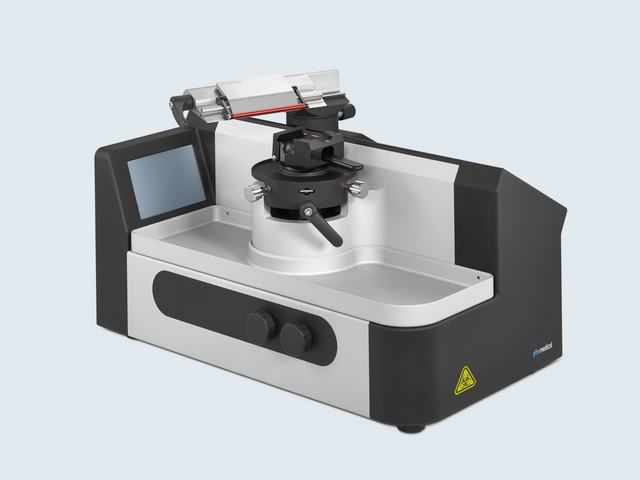

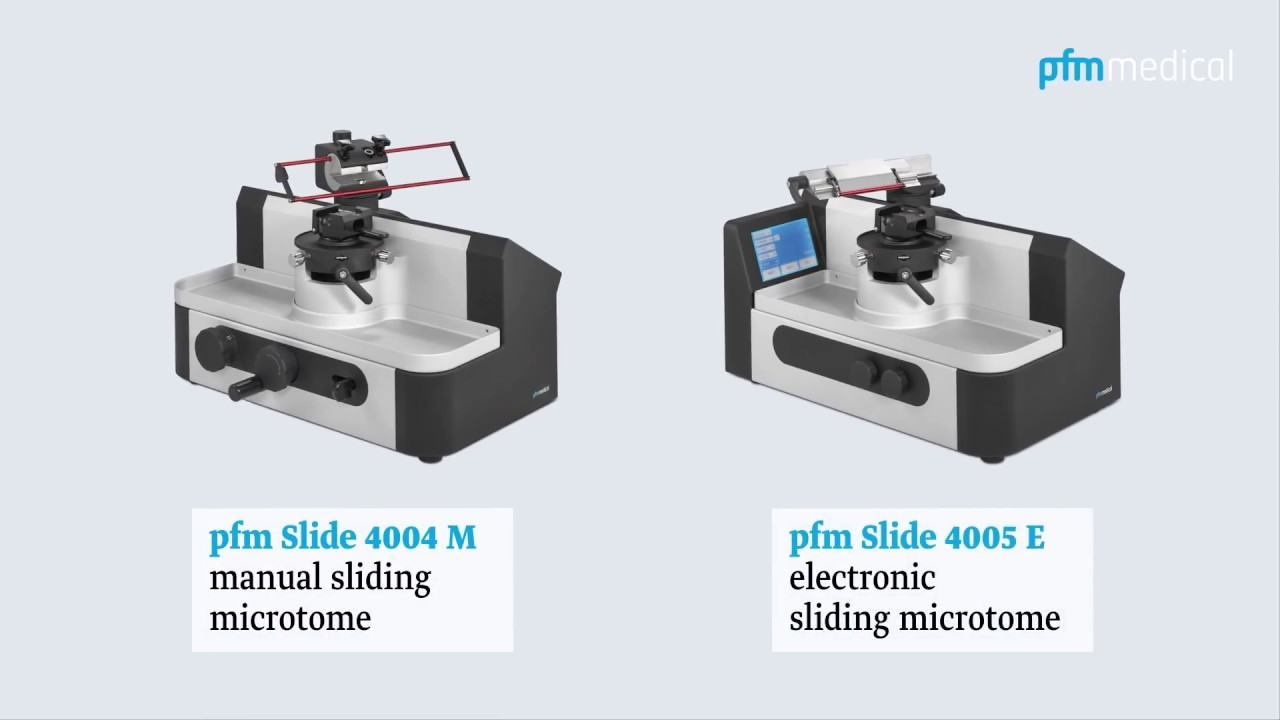

pfm Slide 4005 E


Benefits
Excellent section quality
In daily use, the unprecedented smooth and stable sliding action of the knife holder over the horizontal cross-roller bearing system, offers stress free operation of the microtome. The vertical stroke of the specimen holder, also equipped with a cross roller bearing system, avoids vibration and is free of backlash. This unique technology results in consistent production of high quality sections.
Precise infeed
On the pfm Slide 4005 E, an electronic stepping motor controls the fine feed, trimming and coarse feed function, as well as retraction.
Simple operation
The electronic pfm Slide 4005 E is equipped with a modern touch screen system. The control panels and displays are arranged clearly and by function.
Memory function
The last vertical position of the sample in use is stored by means of the memory function, so that the same position can be recalled when reactivated.
Precise alignment of the specimen
With the help of the object orientation system on the X/Yaxes,the colour-coded zero-position, and the rotating knife holder, the specimens can be aligned quickly and easily in the desired position. This allows the specimen to be easily advanced to the knife/blade edge.
Safe operation
During the adjustment process the slide is latched into a fixed position by its locking device in order to prevent injury when setting up the specimen or the blade. A colour marked finger guard offers additional protection in the area of the knife/blade edge.
Flexible configuration
A wide range of object clamps and knife holders ensures versatility and accurate configuration according to the customers’ requirements.
Easy cleaning and care
The housing surfaces are fully anodized and easy to clean. The waste produced during sectioning is collected in the integrated section waste tray, and then can easily be disposed of.The section waste tray is also anodized and easy to clean.
Product Details
- Modular system with ergonomic design
- Smooth and stable knife sliding action
- Stable and distortion-free housing
- Micrometer enclosed in housing for protection
- Quick change system for universal cassette clamp and standard object clamp
- Rotating knife holder with modern eccentric clamp
- Easy adjustment of the blade angle without unclamping the knife
- Three position knife slide lock
- Section waste tray (optional)
- Finger guard
- Section counter
- Section thickness addition
Technical Data
- Coarse feed speed: 1 mm/s
- Section thickness: 0.5 µm - 100 µm
- Horizontal range: 160 mm
- Vertical range: 30 mm
- Operating environment altitude: up to 2,000 m above sea level
- Pollution degree (according to IEC 61010-1): II
- Overvoltage category (according to IEC 61010-1): II
- Fluctuations in mains voltage: ±10% of the mains voltage
- IP protection class: IP20
- Dimensions (W/D/H): 300 x 420 x 300 mm
- Product weight: 22 kg
Application area
Manufacturer
- pfm medical gmbh, Wankelstr. 60, 50996 Cologne, Germany
Ordering Information
Article number | Delivery unit (VPE) |
---|---|
400510 | 1 pcs |
Downloads
- Sliding Microtomes | Product Brochure (PB1034EN)
- pfm Slide 4005E | Declaration of Conformity (EN, IT)
- pfm Slide 4005E | Declaration of Conformity
Instructions for use can be found in our Download Center.
