TUORen

TUORen
Image similar

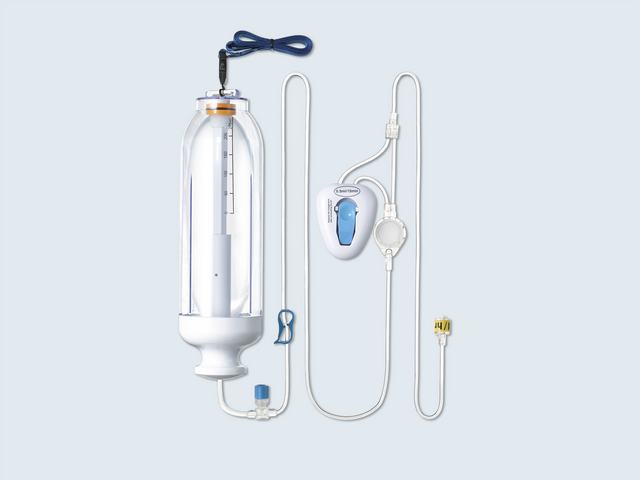

The TUORen infusion pumps are disposable elastomeric pumps with a hard case. They are used for the application of medication. Our disposable infusion pumps have a specially designed balloon-like reservoir that is filled with the drug or fluid intended for infusion. This balloon exerts mechanical pressure there by administering the liquid based medication through a flow restrictor creating the pre-determined flow rate. The entire unit is sterile and is intended for single use only. The device is designed to deliver the nominal volume within +/- 10 % (CBI, CBI + PCA) or +/- 15 % (MR) of the nominal infusion time.

Benefits

  • Easy filling and use
  • Hard case
  • No battery or power supply required
  • Comfortable for patients


Product Details

Three types available

  • Continuous Basal Infusion (CBI type): The CBI type has a micro-flow control tube that controls the flow rate so that the medication may achieve the required therapeutic effect.
  • Patient-Controlled Analgesia (CBI+PCA type): The CBI+PCA type has an additional bolus function, so that the patient can self-administer an extra dosage according to pain situation.
  • Multirate (MR type): The MR type has an additional flow rate regulating device providing four different flow rates to choose from.

  • Accuracy: +/- 10 % (CBI, CBI+PCA) or +/- 15 % (MR)
  • Silicone reservoir allows air to dissipate
  • Extendable telescopic core
  • Particle filter
  • DEHP-free
  • Latex-free
  • Sterilized with EO valid for 5 years

Technical Data

  • Dimensions: between 116.29 × 48.00 mm (60 ml) and Ø 219.91 x 66.50 mm (275 ml)
  • Weight: between 57 g (60 ml) and 176 g (275 ml)
  • Length of infusion tube: 1,370 mm (depending on type)
  • Particle filter: 1.2 μm
  • Calibration parameters: 23 +/- 2 °C and water for injection
  • Further configurations available upon request.

Knowledge

The disposable infusion pumps are designed for patients requiring intravenousIntravenous (from the Latin "intra" (inner, inside) and "vena" (vein)) refers, e.g., to the administration of a medication via a vein., percutaneousPercutaneous means “performed through the skin”. (Latin: "per" - through & "cutis" - skin), subcutaneous, intraoperative sites or epidural administrationMedical term for administering or dispensing medication to patients. of medications. Medications that can be infused include analgesics, chemotherapeutics, antibiotics, antiviral drugs and infusion for re-hydration.

  • Accuracy is affected by temperature, fill volume, height and viscosity of diluent
  • Consider your local disposal guidelines

Application area

  • Analgesic therapy/PCA
  • Antibiotic treatment
  • Chemotherapy
  • Desferal therapy
  • Rehydration

Manufacturer

  • Europ. Bevollmächtigter: MedNet EC-REP GmbH, Borkstraße 10, 48163 Münster, Germany
  • Henan Tuoren Medical Device Co.Ltd., Weiyuan Industrial Zone, Menggang, Changyuan County, 453400 Henan, China

Ordering Information

Article numberBolusFlow rateInfusion timeLocking timeDelivery unit (VPE)
CBI-002-100 2 ml/h 50 h 10 pcs
CBI-003-150 3 ml/h 50 h 5 pcs
CBI-004-100 4 ml/h 24 h 10 pcs
CBI-005-060 5 ml/h 12 h 10 pcs
CBI-005-275 5 ml/h 55 h 5 pcs
CBI-010-240 10 ml/h 24 h 5 pcs
CBI-050-100 50 ml/h 2 h 100 pcs
CBI-100-100 100 ml/h 1 h 100 pcs
CBI-120-240 120 ml/h 2 h 5 pcs
CBI-200-100 200 ml/h 30 min 10 pcs
CBI-200-200 200 ml/h 1 h 5 pcs
CBI-240-240 240 ml/h 1 h 50 pcs
MR-1234-100 100 pcs
MR-2345-100 100 pcs
MR-2345-275 50 pcs
MR-2468-100 10 pcs
PCA-1020-150 2 ml 1 ml/h 6 d 8 min 50 pcs
PCA-2005-100 0.5 ml 2 ml/h 2 d 15 min 10 pcs
