Nit-Occlud® PFO

Nit-Occlud® PFO
Image similar

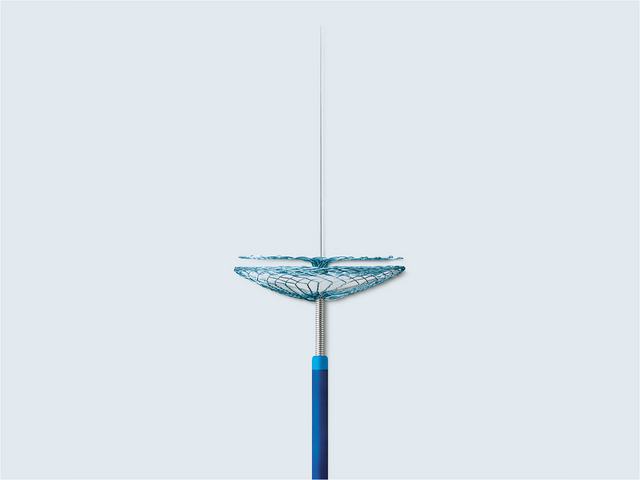

The Nit-Occlud® PFO occluder is an advanced occlusion system designed for optimal performance and effective closure of patent foramen ovale. Nit-Occlud® PFO is a double-umbrella occluder with polyester membranes in a unique design: The occluder is knitted from a single Nitinol wire. Therefore, it has a low profile and no protruding clamps.

Benefits

Patented single-wire knit
Due to the single-wire design, there is no need for protruding clamps which are usually used. This results in a very low profile.

Special design
The occluder consists of a double-layer right atrial disc and a single-layer left atrial disc. The thromboembolic risk is rare.

Accelerated endothelialisation
A polyester membrane facing the LA promotes accelerated endothelialisation.

Various sizes
The Nit-Occlud® PFOThe foramen ovale is an oval opening in the wall separating the left and right upper chambers of the heart. In the unborn child the cardiac septum is not closed completely… is available in diameters of 20 mm, 26 mm and 30 mm.

Easy to use
The easy-to-use application system was developed specifically for Nit-Occlud® PFOThe foramen ovale is an oval opening in the wall separating the left and right upper chambers of the heart. In the unborn child the cardiac septum is not closed completely… procedures. The device is premounted, retrievable and easy to position and to deploy.

Product Details

  • Single-wire knit
  • No need for protruding clamps to fixe loose wire ends
  • Very low-profile
  • Concave single-layer left atrial disc
  • 50% reduction of metal in the left atrium
  • Good adaption to the septal wall
  • Soft and atraumatic rim
  • LA polyester face accelerating endothelialisation
  • Pre-mounted 10 F system
  • Easy to reposition and to retrieve
  • Simple to release
  • Good radiopacity
  • MR conditional

Technical Data

  • Outer Ø implant. catheter: 10 F
  • Length implantation catheter: 90 cm

Manufacturer

  • pfm medical mepro gmbh, Am Söterberg 4, 66620 Nonnweiler, Germany

Video

Protecting your data is important to us. With a click, you give us permission to exchange data with third-party servers and can look at the video.

Ordering Information

Article numberDiameterDelivery unit (VPE)
182020V1 20 mm 1 pcs
182026V1 26 mm 1 pcs
182030V1 30 mm 1 pcs

Downloads

Instructions for use can be found in our Download Center.
