Multi-Snare® Sets

Multi-Snare® Sets

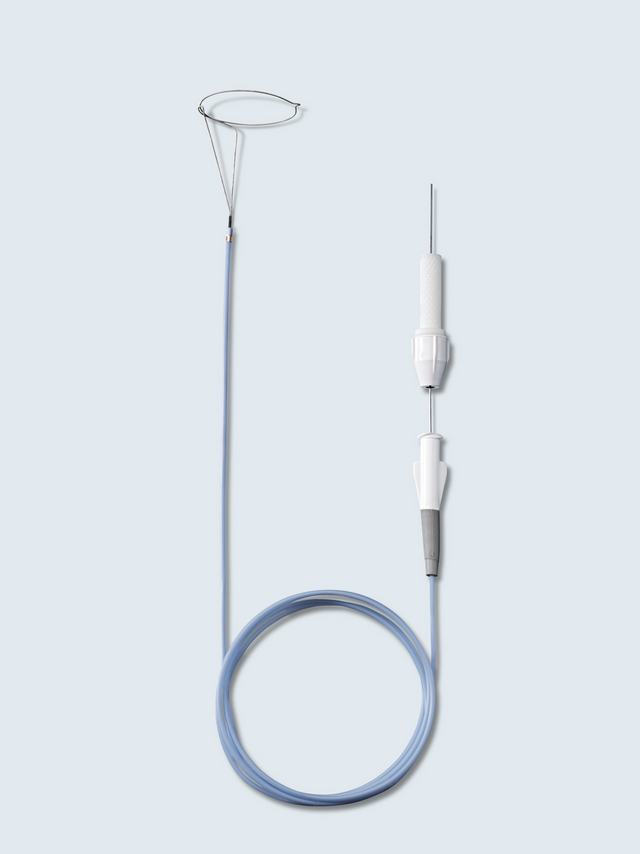

Image similar
The Multi-Snare® products include various retrieval snares for manipulation and retrieval of foreign bodies or fibrin sheaths in the vascular system or hollow organs. The highly-efficient, dual-plane design of the Multi-Snare® device makes it possible to grasp objects from any angle.

Benefits

Dual-plane system
In addition to the main loop, the Multi-Snare® also features an additional, lateral grasping function. These two planes enable objects of all kinds to be grasped quickly and safely.

Variable loop size
The diameter of the loop on the Multi-Snare® can be easily adjusted to the exact size of the object to be retrieved.

Product Details

  • Dual-plane system for retrieval using the loop or for lateral grasping
  • Radiopaque loop made from coiled platinum wire
  • High tensile strength thanks to flexible nitinol core wire
  • Low-profile introducer sheath (3 F minimum)
  • The loops can be rotated 360°
  • Good pushability of the snare in the snare catheter, and direct torque

Technical Data

  • Catheter length: 105 cm
  • Snare length: 125 cm

Application area

Manufacturer

  • pfm medical mepro gmbh, Am Söterberg 4, 66620 Nonnweiler, Germany

Ordering Information

Article numberSnare diameterCatheterDelivery unit (VPE)
147305 5 mm 4 F 1 pcs
147310 10 mm 4 F 1 pcs
147315 15 mm 5 F 1 pcs
147320 20 mm 6 F 1 pcs
147330 30 mm 6 F 1 pcs

Downloads

Instructions for use can be found in our Download Center.
