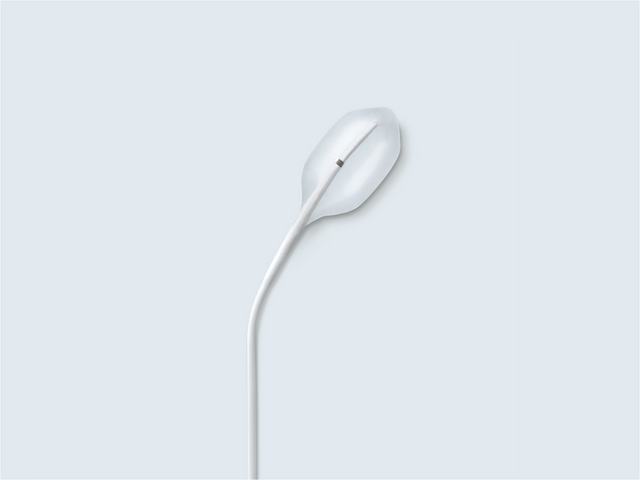

Atrioseptostomy Balloon Catheter – Z-5™

Benefits
Radiopaque Catheter Body & Balloon Image Marker
The NuMED Z-5™ Atrioseptostomy catheter body is Radiopaque to facilitate reliable positioning of the catheter. A Platinum image marker band is placed under the balloon for clear identification under fluoroscopy.
Micro-Thin Non-Compliant Balloon
The NuMED Z-5™ Atrioseptostomy balloon is micro-thin for low deflated profile that maintains tip flexibility. The Inflation of the balloon is controlled by volume. (see volumetric chart-Instructions for Use)
Reduced Balloon Size
The reduced inflated balloon size should make Atrioseptostomy easier to perform on neonates with a small left atrium.
Tip Angulation
The tip of the catheter is angled at 35° to facilitate passage into the left atrium.
Inner Lumen
The NuMED Z-5™ Atrioseptostomy catheter has an inner lumenIn medicine, lumen refers to the cavity or channel within a tube or tubular organ, e.g., a blood vessel.. The catheter end hole can accommodate a guidewire.
Product Details
- Low-profile balloon catheter for atrioseptostomy
- Non-compliant balloon, low profile in relaxed state
- Inner lumen with an opening at the catheter end for inserting a guide wire
- Catheter with 35° angulation to facilitate access to the left atrium
- Easy to use on newborns with a small left atrium
- Platinum markers for clear positioning under fluorescent illumination
Manufacturer
- NuMED Canada Inc., 45 Second Street West, Cornwall, ON K6J 1G3, Canada
- NuMED Inc., 2880 Main Street, Hopkinton, NY 12965, USA
Ordering Information
Article number | Balloon diameter | Ballon length | Guide wire | Introducer size | Delivery unit (VPE) |
---|---|---|---|---|---|
SPT002 | 9.5 mm | 95 mm | 0.014 " | 5 F | 1 pcs |
SPT003 | 13.5 mm | 135 mm | 0.021 " | 6 F | 1 pcs |
