Stent Implantation System – BIB® (Balloon-in-Balloon) Catheter

Stent Implantation System – BIB® (Balloon-in-Balloon) Catheter

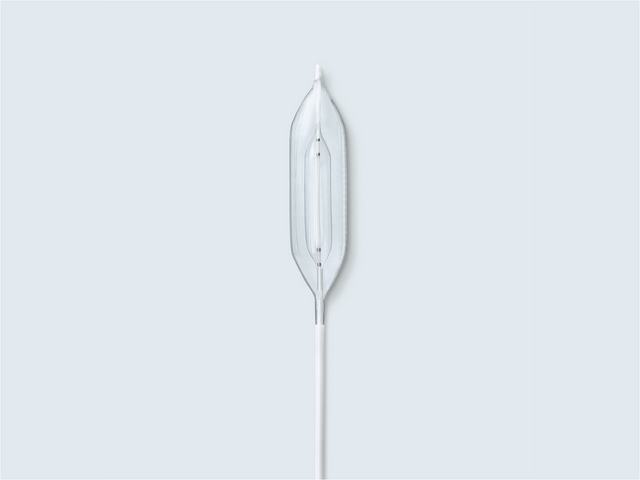

Image similar
The special Balloon-in-Balloon catheter (BIB®) is used to insert CP Stents™ in a two-stage implantation process. This enables aortic stents to be opened or expanded evenly and positioned correctly.

Benefits

Double lumen
The inner balloon is half (50%) the diameter of the outer balloon and 1 cm shorter.

Doubly visible
Each balloon is equipped with two marker bands, making it possible to read the functional length accurately at all times.

Recommendation
We recommend the BIB® catheter for inserting CP Stents™.

Technical Data

  • Usable length: 110 cm
  • Guide wire: 0.035 "

Knowledge

BIB® (Balloon-in-Balloon) Catheter and CP Stent™
We recommend the BIB® catheter for inserting CP Stents™.

  • Use with uncovered CP Stent™: sheath should be at least 2 F larger than the recommended size of introducer device
  • Use with covered CP Stent™: sheath should be at least 3 F larger than the recommended size of introducer device

Manufacturer

  • NuMED Canada Inc., 45 Second Street West, Cornwall, ON K6J 1G3, Canada
  • NuMED Inc., 2880 Main Street, Hopkinton, NY 12965, USA

Ordering Information

Article numberBalloon diameterBallon lengthRBPShaft sizeIntroducer sizeDelivery unit (VPE)
BB001 8 mm 2.5 cm 10 atm 8 F 8 F 1 pcs
BB003 12 mm 2.5 cm 7 atm 8 F 8 F 1 pcs
BB006 12 mm 3 cm 7 atm 8 F 8 F 1 pcs
BB009 12 mm 3.5 cm 7 atm 8 F 8 F 1 pcs
BB010 16 mm 3 cm 5 atm 9 F 9 F 1 pcs
BB011 20 mm 3 cm 4 atm 9 F 10 F 1 pcs
BB012 24 mm 3 cm 3 atm 9 F 11 F 1 pcs
BB013 16 mm 4 cm 5 atm 9 F 9 F 1 pcs
BB014 20 mm 4 cm 4 atm 9 F 10 F 1 pcs
BB015 20 mm 4 cm 4 atm 9 F 11 F 1 pcs
BB016 16 mm 4.5 cm 5 atm 9 F 9 F 1 pcs
BB017 20 mm 4.5 cm 4 atm 9 F 10 F 1 pcs
BB018 24 mm 4.5 cm 3 atm 9 F 11 F 1 pcs
BB019 16 mm 5.5 cm 5 atm 9 F 9 F 1 pcs
BB020 20 mm 5.5 cm 4 atm 9 F 10 F 1 pcs
BB021 24 mm 5.5 cm 3 atm 9 F 11 F 1 pcs
BB022 14 mm 3 cm 6 atm 8 F 8 F 1 pcs
BB023 16 mm 2.5 cm 5 atm 9 F 9 F 1 pcs
BB024 18 mm 2.5 cm 4 atm 9 F 10 F 1 pcs
BB025 14 mm 3.5 cm 6 atm 8 F 8 F 1 pcs
BB026 16 mm 3.5 cm 5 atm 9 F 9 F 1 pcs
BB027 18 mm 3.5 cm 4 atm 9 F 10 F 1 pcs
BB028 16 mm 5 cm 5 atm 9 F 9 F 1 pcs
BB029 18 mm 4.5 cm 4 atm 9 F 10 F 1 pcs
BB030 18 mm 5 cm 4 atm 9 F 10 F 1 pcs
BB031 18 mm 5.5 cm 4 atm 9 F 10 F 1 pcs
BB032 20 mm 5 cm 4 atm 9 F 10 F 1 pcs
BB033 12 mm 4 cm 7 atm 8 F 8 F 1 pcs
BB034 12 mm 5 cm 7 atm 8 F 8 F 1 pcs
BB035 14 mm 4.5 cm 6 atm 8 F 8 F 1 pcs
BB036 24 mm 5 cm 3 atm 9 F 11 F 1 pcs
BB037 12 mm 4.5 cm 7 atm 8 F 8 F 1 pcs
BB038 14 mm 4 cm 6 atm 8 F 8 F 1 pcs
BB039 14 mm 5 cm 6 atm 8 F 8 F 1 pcs
BB040 18 mm 3 cm 4 atm 9 F 10 F 1 pcs
BB041 18 mm 4 cm 4 atm 9 F 10 F 1 pcs
BB042 20 mm 3.5 cm 4 atm 9 F 10 F 1 pcs
BB052 14 mm 3 cm 6 atm 8 F 8 F 1 pcs
BB056 15 mm 3.5 cm 5 atm 9 F 9 F 1 pcs
BB058 14 mm 5 cm 6 atm 8 F 9 F 1 pcs
BB061 18 mm 5 cm 4 atm 9 F 11 F 1 pcs
BB062 18 mm 5 cm 4 atm 9 F 11 F 1 pcs
BB063 22 mm 4 cm 3 atm 9 F 11 F 1 pcs
BB064 22 mm 4.5 cm 3 atm 9 F 11 F 1 pcs
BB065 22 mm 5 cm 3 atm 9 F 11 F 1 pcs
BB066 22 mm 5.5 cm 3 atm 9 F 11 F 1 pcs
BB067 24 mm 35 mm 3 atm 9 F 11 F 1 pcs
BB068 22 mm 40 mm 3 atm 11 F 16 F 1 pcs
BB069 26 mm 50 mm 3 atm 11 F 161 F 1 pcs
BB070 26 mm 60 mm 3 atm 11 F 16 F 1 pcs
BB071 28 mm 40 mm 2 atm 11 F 16 F 1 pcs
BB072 28 mm 50 mm 2 atm 11 F 16 F 1 pcs
BB073 28 mm 60 mm 2 atm 11 F 16 F 1 pcs
BB074 30 mm 40 mm 2 atm 11 F 16 F 1 pcs
BB075 30 mm 50 mm 2 atm 11 F 16 F 1 pcs
BB076 30 mm 60 mm 2 atm 11 F 16 F 1 pcs
