Dilatation Catheter Mullins-X™

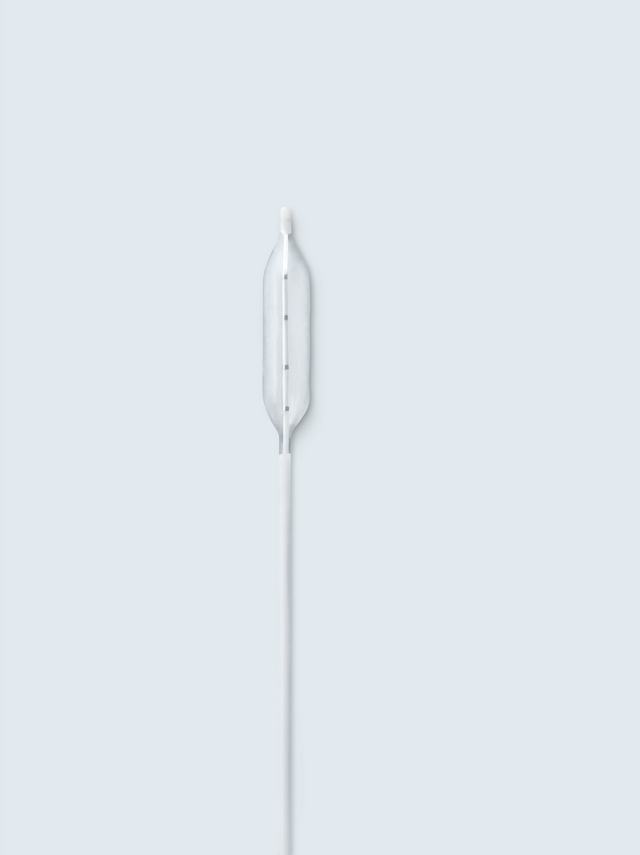

Image similar
The Mullins-X™ dilatation catheter is the specialist when it comes to indications calling for extremly high pressure. It is ideal for stents placement and for stent redilatatation procedures.
Benefits
Laminated construction
It´s special construction provides a rated burst pressure (RBP) of up to 14 atm.
Accurate positioning
Features five markers for precise positioning. One marker is in the tip of the catheter, two are fitted below the shoulder of the balloon and two are in the middle section of the balloon.
Product Details
- Available in diameters ranging from 12 to 20 mm
- RBP from 11 - 14 atm
Application area
- Placement of stents and redilatation procedures in already implanted stents
Manufacturer
- NuMED Canada Inc., 45 Second Street West, Cornwall, ON K6J 1G3, Canada
- NuMED Inc., 2880 Main Street, Hopkinton, NY 12965, USA
Ordering Information
Article number | Balloon diameter | Ballon length | RBP | Introducer size | Delivery unit (VPE) |
---|---|---|---|---|---|
PTM440 | 12 mm | 30 mm | 14 atm | 9 F | 1 pcs |
PTM441 | 12 mm | 40 mm | 14 atm | 9 F | 1 pcs |
PTM442 | 14 mm | 30 mm | 14 atm | 10 F | 1 pcs |
PTM443 | 14 mm | 40 mm | 14 atm | 10 F | 1 pcs |
PTM445 | 15 mm | 40 mm | 13 atm | 10 F | 5 pcs |
PTM446 | 16 mm | 30 mm | 12 atm | 11 F | 1 pcs |
PTM447 | 16 mm | 40 mm | 12 atm | 11 F | 1 pcs |
PTM448 | 18 mm | 30 mm | 12 atm | 12 F | 5 pcs |
PTM449 | 18 mm | 40 mm | 12 atm | 12 F | 1 pcs |
PTM450 | 20 mm | 30 mm | 11 atm | 13 F | 5 pcs |
PTM451 | 20 mm | 40 mm | 11 atm | 13 F | 1 pcs |
PTM452 | 22 mm | 30 mm | 10 atm | 14 F | 5 pcs |
PTM453 | 22 mm | 40 mm | 10 atm | 14 F | 1 pcs |
PTM454 | 25 mm | 30 mm | 9 atm | 16 F | 5 pcs |
PTM455 | 25 mm | 40 mm | 9 atm | 16 F | 1 pcs |
PTM456 | 23 mm | 30 mm | 9 atm | 14 F | 5 pcs |
PTM457 | 23 mm | 40 mm | 9 atm | 14 F | 1 pcs |
Please note:
Not all products are available in every country.
Please refer to the respective country websites:
For all other countries please use the contact form to enquire about availability for your country.
