Valvuloplasty Catheter – COEfficient™

Valvuloplasty Catheter – COEfficient™

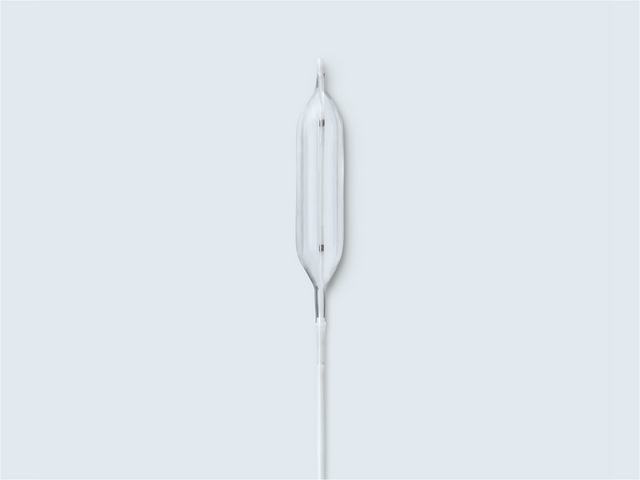

Image similar
The COEfficient™ Pediatric Valvuloplasty catheter is engineered for maximum steering and tracking. The coaxial shaft design provides enhanced column strength and pushability combined with a flexible distal tip for optimum steerability. The distinguishing feature of this high-pressure balloon catheter is its extremely slim profile. It can be used with even the smallest introducer sheaths (4–7 Fr at 13–7 atm).

Benefits

Micro-thin
The COEfficient™ balloon is made of a micro-thin material which allows an exceptionally low profile and therefore, requires the smallest introducers possible.

Non-compliant Balloon
The COEfficient™ balloon is coaxially constructed with a distally mounted non-compliant high pressure balloon suitable for resistant stenosisStenosis is an abnormal narrowing of blood vessels or other hollow structures..

Maximum Trackability
The distal shaft through the balloon is highly flexible for exceptional maneuverability. This, combined with the pushability of the coaxial shaft, provides outstanding tracking performance.

Radiopaque Marker
Platinum marker bands facilitate reliable positioning of the balloon.

Customized Sizes upon request
If you don’t find the appropriate size for your procedure, we can make customized sizes upon request.

Product Details

  • CE: Class III
  • Catheter Body: Polymeric, DEHP-free, Latex-free
  • Balloon: Thermoplastic Elastomer (Non-compliant – The balloon will not exceed +/- 10% of the given balloon size at Rated Burst Pressure), DEHP-free, Latex-free
  • Image Band: Platinum Iridium

Application area

  • Treatment of pulmonary valve stenosis

Manufacturer

  • NuMED Canada Inc., 45 Second Street West, Cornwall, ON K6J 1G3, Canada
  • NuMED Inc., 2880 Main Street, Hopkinton, NY 12965, USA

Ordering Information

Article numberBalloon diameterBallon lengthUsable lengthRBPIntroducer sizeDelivery unit (VPE)
COE104 5 mm 20 mm 75 cm 12 atm 4 F 1 pcs
COE107 6 mm 20 mm 75 cm 12 atm 5 F 1 pcs
COE110 7 mm 20 mm 75 cm 11 atm 5 F 1 pcs
COE118 9 mm 40 mm 75 cm 10 atm 6 F 1 pcs
COE120 10 mm 30 mm 75 cm 10 atm 6 F 1 pcs
COE123 11 mm 30 mm 75 cm 8 atm 6 F 1 pcs
COE127 12 mm 40 mm 75 cm 7 atm 7 F 1 pcs
COE131 7 mm 20 mm 150 cm 11 atm 5 F 1 pcs
COE145 8 mm 30 mm 150 cm 10 atm 6 F 1 pcs

Downloads

Instructions for use can be found in our Download Center.
