Valvuloplasty Catheter – Tyshak II®, Tyshak Mini®

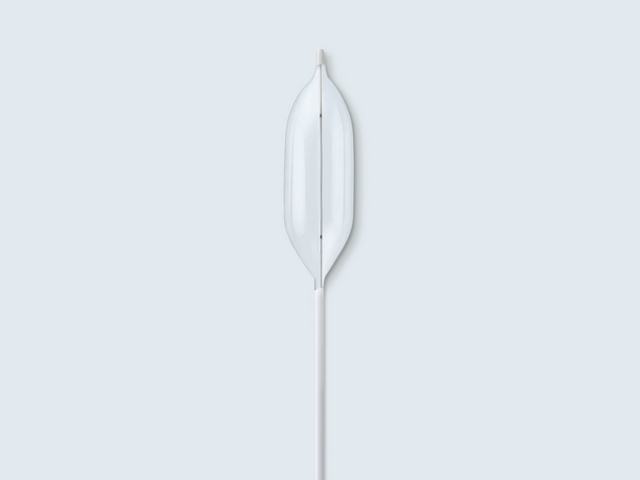

Image similar
Tyshak® catheters are suitable for percutaneous transluminal valvuloplasty (PTV) and pre-dilatation in transcatheter heart-valve replacement procedures. The extremely low profile is compatible with the smallest introducer systems. The balloon is very slim with a correspondingly flexible catheter tip.
Benefits
Fast
The special shaft construction allows very fast inflation and deflation
Extremely low profile
The very low profile is compatible with the smallest introducer systems
Customised design
Tyshak® catheters are available with balloon diameters ranging from 4 to 30 mm.
User-friendly
Devised for optimum manoeuvrability and tracking properties
Tyshak II® – Specifically for children
The Tyshak II® was specifically designed for paediatric cardiology. The streamlined balloon and very slim shaft causes minimum trauma and discomfort.
Product Details
- Very fast inflation and deflation
- Extremely low profile for use with the smallest introducer systems
- Tyshak Mini®: Design featuring extremely streamlined balloons, offering the lowest profile of all balloons on the market
Application area
- Treatment of pulmonary valve insufficiency
Manufacturer
- NuMED Canada Inc., 45 Second Street West, Cornwall, ON K6J 1G3, Canada
- NuMED Inc., 2880 Main Street, Hopkinton, NY 12965, USA
Ordering Information
| Article number | Balloon diameter | Ballon length | Guide wire Ø | Usable length | Nominal pressure | RBP | Introducer size | Shaft size | Delivery unit (VPE) |
|---|---|---|---|---|---|---|---|---|---|
| PDC177 | 8 mm | 20 mm | 0.025 " | 70 cm | 5 atm | 5 F | 5 F | 1 pcs | |
| PDC191 | 14 mm | 40 mm | 0.035 " | 100 cm | 3.5 atm | 7 F | 6 F | 1 pcs | |
| PDC400 | 4 mm | 20 mm | 0.014 " | 65 cm | 4.5 atm | 6 atm | 3 F | 2.5 F | 1 pcs |
| PDC401 | 5 mm | 20 mm | 0.014 " | 65 cm | 4.5 atm | 6 atm | 3 F | 2.5 F | 1 pcs |
| PDC402 | 6 mm | 20 mm | 0.014 " | 65 cm | 3.5 atm | 4 atm | 3 F | 2.5 F | 1 pcs |
| PDC403 | 7 mm | 20 mm | 0.014 " | 65 cm | 3.5 atm | 4 atm | 3 F | 2.5 F | 1 pcs |
| PDC404 | 8 mm | 20 mm | 0.014 " | 65 cm | 3.5 atm | 4 atm | 3 F | 2.5 F | 1 pcs |
| PDC405 | 9 mm | 20 mm | 0.014 " | 65 cm | 3 atm | 3.5 atm | 4 F | 3.5 F | 1 pcs |
| PDC406 | 10 mm | 20 mm | 0.014 " | 65 cm | 3 atm | 3.5 atm | 4 F | 3.5 F | 1 pcs |
| PDC407 | 9 mm | 40 mm | 0.014 " | 65 cm | 3 atm | 3.5 atm | 4 F | 3.5 F | 1 pcs |
| PDC408 | 10 mm | 40 mm | 0.014 " | 65 cm | 3 atm | 3.5 atm | 4 F | 3.5 F | 1 pcs |
| PDC500 | 4 mm | 20 mm | 0.021 " | 70 cm | 4.5 atm | 6 atm | 4 F | 4 F | 1 pcs |
| PDC501 | 5 mm | 20 mm | 0.021 " | 70 cm | 4.5 atm | 6 atm | 4 F | 4 F | 1 pcs |
| PDC502 | 6 mm | 20 mm | 0.021 " | 70 cm | 3.5 atm | 4 atm | 4 F | 4 F | 1 pcs |
| PDC503 | 7 mm | 20 mm | 0.021 " | 70 cm | 3.5 atm | 4 atm | 4 F | 4 F | 1 pcs |
| PDC504 | 8 mm | 20 mm | 0.021 " | 70 cm | 3.5 atm | 4 atm | 4 F | 4 F | 1 pcs |
| PDC505 | 9 mm | 30 mm | 0.025 " | 90 cm | 3 atm | 3.5 atm | 5 F | 5 F | 1 pcs |
| PDC506 | 10 mm | 30 mm | 0.025 " | 90 cm | 3 atm | 3.5 atm | 5 F | 5 F | 1 pcs |
| PDC507 | 12 mm | 30 mm | 0.025 " | 90 cm | 3 atm | 3.5 atm | 5 F | 5 F | 1 pcs |
| PDC508 | 12 mm | 40 mm | 0.035 " | 90 cm | 3 atm | 3.5 atm | 6 F | 6 F | 1 pcs |
| PDC509 | 7 mm | 30 mm | 0.021 " | 70 cm | 3.5 atm | 4 atm | 4 F | 4 F | 1 pcs |
| PDC510 | 8 mm | 30 mm | 0.021 " | 70 cm | 3.5 atm | 4 atm | 4 F | 4 F | 1 pcs |
| PDC511 | 14 mm | 30 mm | 0.035 " | 100 cm | 2 atm | 3 atm | 4 F | 4 F | 1 pcs |
| PDC512 | 14 mm | 40 mm | 0.035 " | 100 cm | 2 atm | 3 atm | 7 F | 7 F | 1 pcs |
| PDC513 | 14 mm | 50 mm | 0.035 " | 100 cm | 2 atm | 3 atm | 7 F | 7 F | 1 pcs |
| PDC514 | 14 mm | 60 mm | 0.035 " | 100 cm | 2 atm | 3 atm | 7 F | 7 F | 1 pcs |
| PDC515 | 15 mm | 30 mm | 0.035 " | 100 cm | 2 atm | 3 atm | 7 F | 7 F | 1 pcs |
| PDC516 | 15 mm | 40 mm | 0.035 " | 100 cm | 2 atm | 3 atm | 7 F | 7 F | 1 pcs |
| PDC519 | 16 mm | 30 mm | 0.035 " | 100 cm | 2 atm | 2.5 atm | 7 F | 7 F | 1 pcs |
| PDC520 | 16 mm | 40 mm | 0.035 " | 100 cm | 2 atm | 2.5 atm | 7 F | 7 F | 1 pcs |
| PDC521 | 16 mm | 50 mm | 0.035 " | 100 cm | 2 atm | 2.5 atm | 7 F | 7 F | 1 pcs |
| PDC522 | 16 mm | 60 mm | 0.035 " | 100 cm | 2 atm | 2.5 atm | 7 F | 7 F | 1 pcs |
| PDC523 | 17 mm | 30 mm | 0.035 " | 100 cm | 2 atm | 2.5 atm | 7 F | 7 F | 1 pcs |
| PDC524 | 17 mm | 40 mm | 0.035 " | 100 cm | 2 atm | 2.5 atm | 7 F | 7 F | 1 pcs |
| PDC525 | 17 mm | 50 mm | 0.035 " | 100 cm | 2 atm | 2.5 atm | 7 F | 7 F | 1 pcs |
| PDC527 | 18 mm | 30 mm | 0.035 " | 100 cm | 1.5 atm | 2 atm | 8 F | 8 F | 1 pcs |
| PDC528 | 18 mm | 40 mm | 0.035 " | 100 cm | 1.5 atm | 2 atm | 8 F | 8 F | 1 pcs |
| PDC529 | 18 mm | 50 mm | 0.035 " | 100 cm | 1.5 atm | 2 atm | 8 F | 8 F | 1 pcs |
| PDC530 | 18 mm | 60 mm | 0.035 " | 100 cm | 1.5 atm | 2 atm | 8 F | 8 F | 1 pcs |
| PDC531 | 20 mm | 30 mm | 0.035 " | 100 cm | 1.5 atm | 2 atm | 8 F | 8 F | 1 pcs |
| PDC532 | 20 mm | 40 mm | 0.035 " | 100 cm | 1.5 atm | 2 atm | 8 F | 8 F | 1 pcs |
| PDC533 | 20 mm | 50 mm | 0.035 " | 100 cm | 1.5 atm | 2 atm | 8 F | 8 F | 1 pcs |
| PDC534 | 20 mm | 60 mm | 0.035 " | 100 cm | 1.5 atm | 2 atm | 8 F | 8 F | 1 pcs |
| PDC535 | 22 mm | 30 mm | 0.035 " | 100 cm | 1.5 atm | 2 atm | 8 F | 8 F | 1 pcs |
| PDC536 | 22 mm | 40 mm | 0.035 " | 100 cm | 1.5 atm | 2 atm | 8 F | 8 F | 1 pcs |
| PDC537 | 22 mm | 50 mm | 0.035 " | 100 cm | 1.5 atm | 2 atm | 8 F | 8 F | 1 pcs |
| PDC538 | 11 mm | 30 mm | 0.035 " | 100 cm | 1.5 atm | 3.5 atm | 8 F | 8 F | 1 pcs |
| PDC539 | 23 mm | 30 mm | 0.035 " | 100 cm | 1.5 atm | 2 atm | 9 F | 9 F | 1 pcs |
| PDC540 | 23 mm | 40 mm | 0.035 " | 100 cm | 1.5 atm | 2 atm | 9 F | 9 F | 1 pcs |
| PDC541 | 23 mm | 50 mm | 0.035 " | 100 cm | 1.5 atm | 2 atm | 9 F | 9 F | 1 pcs |
| PDC542 | 23 mm | 60 mm | 0.035 " | 100 cm | 1.5 atm | 2 atm | 9 F | 9 F | 1 pcs |
| PDC543 | 25 mm | 30 mm | 0.035 " | 100 cm | 1 atm | 1.5 atm | 9 F | 9 F | 1 pcs |
| PDC544 | 25 mm | 40 mm | 0.035 " | 100 cm | 1 atm | 1.5 atm | 9 F | 9 F | 1 pcs |
| PDC545 | 25 mm | 50 mm | 0.035 " | 100 cm | 1 atm | 1.5 atm | 9 F | 9 F | 1 pcs |
| PDC546 | 25 mm | 60 mm | 0.035 " | 100 cm | 1 atm | 1.5 atm | 9 F | 9 F | 1 pcs |
| PDC548 | 30 mm | 40 mm | 0.035 " | 100 cm | 1 atm | 1.5 atm | 10 F | 9 F | 1 pcs |
| PDC549 | 30 mm | 50 mm | 0.035 " | 100 cm | 1 atm | 1.5 atm | 10 F | 9 F | 1 pcs |
| PDC550 | 30 mm | 60 mm | 0.035 " | 100 cm | 1 atm | 1.5 atm | 10 F | 9 F | 1 pcs |
| SN002 | 16 mm | 20 mm | 0.035 " | 100 cm | 2 atm | 2.5 atm | 7 F | 7 F | 1 pcs |
| SN004 | 12 mm | 60 mm | 0.021 " | 100 cm | 4.5 atm | 6 atm | 4 F | 4 F | 1 pcs |
| SN005 | 6 mm | 20 mm | 0.021 " | 100 cm | 3.5 atm | 4 atm | 4 F | 4 F | 1 pcs |
| SN006 | 7 mm | 20 mm | 0.021 " | 100 cm | 3.5 atm | 4 atm | 4 F | 4 F | 1 pcs |
| SN007 | 8 mm | 20 mm | 0.021 " | 100 cm | 3.5 atm | 4 atm | 4 F | 4 F | 1 pcs |
| SN009 | 10 mm | 30 mm | 0.025 " | 100 cm | 3 atm | 3.5 atm | 5 F | 5 F | 1 pcs |
| SN010 | 7 mm | 30 mm | 0.021 " | 100 cm | 3.5 atm | 4 atm | 4 F | 4 F | 1 pcs |
| SO001 | 10 mm | 40 mm | 0.025 " | 90 cm | 3 atm | 3.5 atm | 5 F | 5 F | 1 pcs |
| SO002 | 11 mm | 40 mm | 0.025 " | 90 cm | 3 atm | 3.5 atm | 5 F | 5 F | 1 pcs |
| SO007 | 9 mm | 20 mm | 0.025 " | 90 cm | 3 atm | 3.5 atm | 5 F | 5 F | 1 pcs |
| SO008 | 12 mm | 20 mm | 0.025 " | 90 cm | 3 atm | 3.5 atm | 5 F | 5 F | 1 pcs |
| SO014 | 12 mm | 20 mm | 0.035 " | 90 cm | 3 atm | 3.5 atm | 6 F | 6 F | 1 pcs |
| SO017 | 11 mm | 30 mm | 0.025 " | 90 cm | 3 atm | 3.5 atm | 5 F | 5 mm | 1 pcs |
| SO018 | 14 mm | 20 mm | 0.035 " | 100 cm | 2 atm | 3 atm | 7 F | 7 F | 1 pcs |
| SO020 | 5 mm | 30 mm | 0.021 " | 70 cm | 4.5 atm | 6 atm | 4 F | 4 F | 1 pcs |
| SO021 | 6 mm | 30 mm | 0.021 " | 70 cm | 3.5 atm | 4 atm | 4 F | 4 F | 1 pcs |
| SO029 | 8 mm | 40 mm | 0.021 " | 70 cm | 3.5 atm | 4 atm | 4 F | 4 F | 1 pcs |
| SO035 | 13 mm | 20 mm | 0.035 " | 100 cm | 2.5 atm | 3 atm | 6 F | 6 F | 1 pcs |
| SO036 | 13 mm | 30 mm | 0.035 " | 100 cm | 2.5 atm | 3 atm | 6 F | 6 F | 1 pcs |
