Low Vacuum Drainage System

Low Vacuum Drainage System

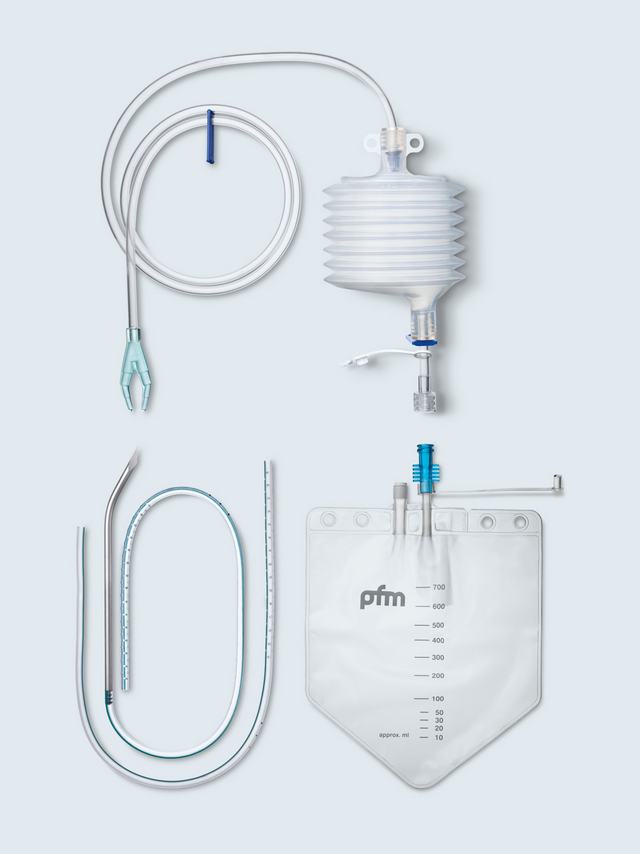

Image similar
The Low Vacuum Drainage System is a large capacity wound drainage system for manual evacuation in sensitive tissue using a constant low vacuum.

Benefits

Gentle application
With its large capacity - compared to other low vacuum systems - this system for manual evacuation with low suction ensures gentle* wound drainageIn medicine drainage refers to the systematic withdrawal of increased or diseased fluids, gases and discharges to re-establish normal conditions in sensitive tissue.

Improved patient and user protection
Two one-way valves efficiently prevent backflow thus minimising the risk of retrograde wound infections.

Minimised risk of cross-contamination
Cost-effective replacement bags with one-way valve minimise the risk of cross-contamination.

Pre-configured sets
The pre-configured wound drainage set consists of bellow, connection tube, Y-connector, Redon drains and optionally a disposable guide needle. Assembly with silicone drains also optionally available.

* compared to high vacuum systems

Product Details

  • Large capacity 250 ml bellows to increase the time intervals between re-evacuations and to reduce the total number of re-evacuations required
  • Pre-attached Y-connectors with closed distal ends allow the optional use of one or two Redon drains (CH 08 – CH 18) without the need for additional connectors, adaptors or clamps
  • Hydrophobically coated filter on the drainage bag for hygienic pressure equalisation without the risk of contact with the secretion
  • Safety cap at the bottom outlet of the bellows to prevent spillage of residual fluid
  • Ease of use
  • Redon drains DEHP-free
  • Latex-free

Technical Data

  • Volume Bellows: 250 ml
  • Volume Drainage bag: 700 ml
  • Drain length: 50 cm
  • Drain perforation length: 15 cm

Manufacturer

  • pfm medical mepro gmbh, Am Söterberg 4, 66620 Nonnweiler, Germany

Ordering Information

Article numberVersionDrain sizeDelivery unit (VPE)
20760 2 Redon drains 10 CH 25 pcs
20761 2 Redon drains 14 CH 25 pcs
20762 2 Redon drains 18 CH 25 pcs
20770 2 Redon drains, Trocar 10 CH 25 pcs
20771 2 Redon drains, Trocar 14 CH 25 pcs
20772 2 Redon drains, Trocar 18 CH 25 pcs

Downloads

Instructions for use can be found in our Download Center.
