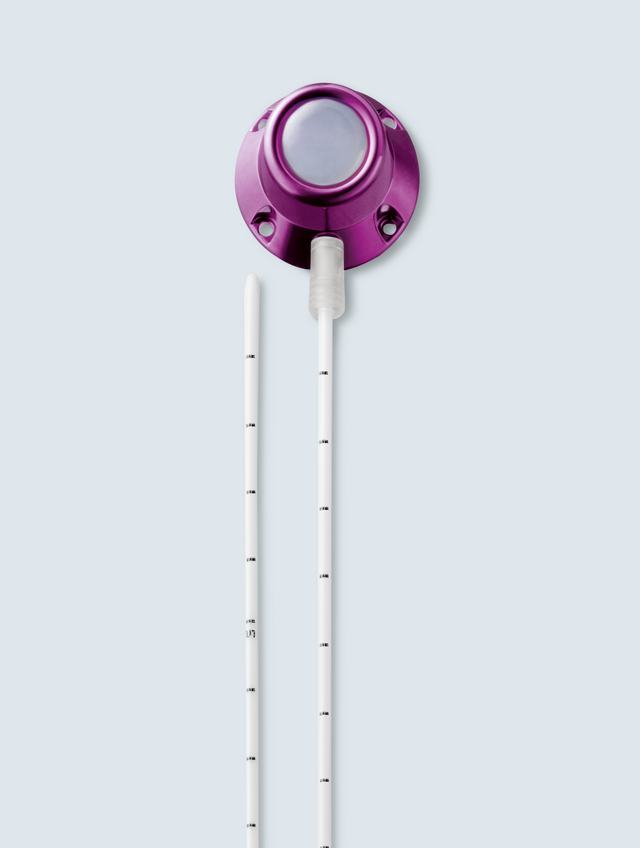

T-Port Contrast

Benefits

Titanium material of proven quality

High material quality
The excellence material ensures a highly reliable usage

Suitable for hi-pressure applications
21 bar (300 psi)

Product Details

• Catheter made of polyurethane (PU) or silicone
• Radiopaque, length marked catheter
• Vessel-friendly atraumatic catheter tip
• Click-Connector for safe connection between catheter and port chamber
• Highly compressed silicone membrane for secure closing of septumThe septum (from the Latin "saeptum" - border, fence) is a wall. The cardiac septum separates the left and right part of the heart. and stable holding of puncturing needle
• Well-palpable septum for safe identification of the puncture site
• Latex-, DEHP- and PVC-free

Technical Data

• Material Catheter: PUR
• max. Flow rate: 5 ml/s
• Catheter length: 75 cm
• Product weight: 14 g
• Residual volumeThe residual volume is the volume of gas remaining in the lungs after maximum exhalation, which cannot be expelled from the lungs because of physical reasons.: 0.8 ml

Knowledge

The implantable port systems of pfmmedical meet the highest international standards for more than 30 years and are used reliably for the long-term medication in the areas of oncology, e.g. with chemotherapies and parenteral nutritionParenteral nutrition is a type of artificial nutrition bypassing the gastrointestinal tract by administering the nutrients to the patient intravenously (via the veins).. The material concept of the port offers the user thereby a choice of high-quality plastic port systems, a variation in pure titanium as well as a hybrid version made of plastic and titanium. High pressure ports as well as low profile versions are available in all three materials.

Configurations
Basic Set
The surgical cut-down technique is feasible with the listed components. Those components are always included in all set configurations.

• 1 port (with CT-marking)
• 1 catheter with atraumatic tip
• 2 radiopaque click-connectors
• 1 rinsing needle
• 1 Huber needle straight (22 G, 25 mm)
• 1 vein lifter
• (1 purple bracelet for identification as contrast port)
• 1 patient passport

Standard Set
The Modified Seldinger Technique is recommended being done with our compatible Standard MST Kit, which consists of a tunneler, a guidewire, an introducer needle as well as a peel-away-sheath.

• Basic Set (see above)
• Tunneler
• Guidewire with dispenser
• Echogenic introducer needle
• Peel-away-sheath with dilator

Premium Set
Performing the Modified Seldinger Technique is also possible with our Premium MST Kit which contains of valuable technical features, e.g. an echogenic introducer needle, a peel-away-sheath with either an additional stylet (5 F) or valve (7 F, 9 F) and a nitinol guidewire.

• Basic Set (see above)
• Tunneler
• Nitinol guidewire with dispenser
• Echogenic safety introducer needle (5 F)
• Echogenic introducer needle (7 F, 9 F)
• Peel-away-sheath with dilator and additional stylet (5 F)
• Peel-away-sheath with dilator and valve (7 F, 9 F)

Manufacturer

• pfm medical cpp SA, 9 Allée du Quartz, CH-2300 La Chaux-de-Fonds, Switzerland

Ordering Information

Downloads

• Port Systems & Accessories | Product Brochure (PB2002EN)
• Clinical Investigation of pfmmedical Implantable Vascular Access Ports | Study Summary (MM2201EN)

Instructions for use can be found in our Download Center.
