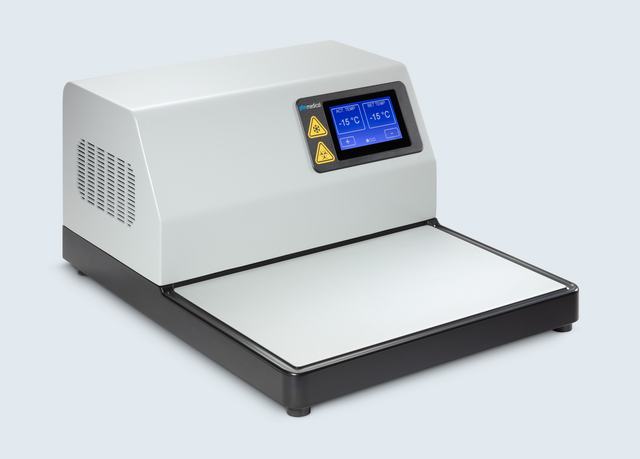

Cooling Plate Samui®

Cooling Plate Samui®
Image similar
The cooling plate Samui® allows cooling of human and animal tissue specimens to below room temperature for a set period during sectioning at the microtome and can be used in the histological laboratory in the field of medicine, research and industry.

Benefits

Electronic Temperature Setting
The temperature is set and controlled electronically.

Working Surface with Drain Channel
The working surface contains a drain channel which prevents condensate overflowing after the instrument has been switched off.

Easy to Clean/Maintain
The housing is made from powder coated aluminum and plastic for insulation. The cooling surface is made of anodised aluminium and is easy to clean.

User-Friendly
The touch display is easy to use.

Calibration
High, long-term accuracy thanks to easy calibration during maintenance.

Quickly Operational
The cooling plate can reach −15°C in less than 30 minutes (from room temperature 23°C).

High Performance
The cooling plate can reach −15°C from a room temperature of up to 30°C.

Technical Data

  • Material Housing: powder coated aluminum and plastic
  • Material Cooling Surface: Anodised aluminium
  • Capacity cooling surface: 78 standard paraffin blocks (28/41 mm)
  • Dimensions cooling surface (W/D): 370 mm x 250 mm
  • Temperature Settings: -15°C - 10°C

Manufacturer

  • pfm medical gmbh, Wankelstr. 60, 50996 Cologne, Germany

Ordering Information

Article numberVersionProduct weightInstrument fuse, primary circuitNominal VoltageDelivery unit (VPE)
700700 230 V (220/240 V) 21.4 kg 6.3 A 220V/240V 1 pcs
700710 115 V (115/127 V) 22.9 kg 10 A 115V/127V 1 pcs

Downloads

Instructions for use can be found in our Download Center.
